Thuis /Producten/Het T-stuk van de pijpmontage/Hand Railing Main Flange Fittings Steel Pipe Joints 104 Long Tee Fittings

Hand Railing Main Flange Fittings Steel Pipe Joints 104 Long Tee Fittings

500.0 pieces
MOQ
Hand Railing Main Flange Fittings Steel Pipe Joints 104 Long Tee Fittings
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: 1/2"-2"
Technics: Casting
Connection: Female
Shape: Equal
Head Code: plain
Application: Hand railing, safety guardrails, fencing,racking
Material Hardness: <=150HB
Suit to Pipe: BS EN 10255 2004
Material Specification: BS EN 1562 1997
Material Elongation: 6-10%
Grub Screw: ISO 4029 DIN 916
Thread: BS 2779:1986 1/4", 3/8"
Material Tensile Strength: 300-350 Mpa
Basis informatie
Model Number: 1/2"-2"
Betalen & Verzenden Algemene voorwaarden
Packaging Details: carton box with dimension 36*27*20(cm) wooden or steel pallets with dimension 110*110*115cm(60 cartons) or 110*110*95cm(48 cartons) As pur customer's request
Supply Ability: 20000 Ton/Tons per Year
Productomschrijving

Key Clamp Fittings Steel Pipe Joints 104 Long Tee Fittings

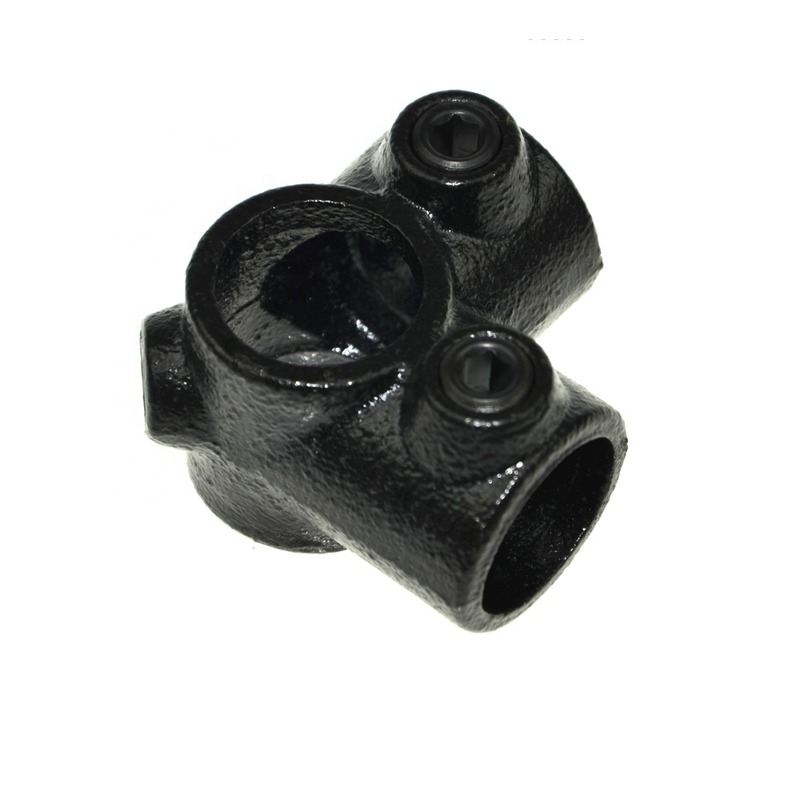

90° long tee connection between 2 tubes, typical use is on straight and level guardrail to connect the vertical post to the top rail. It can also be used to join tubes in the top of the long tee.

Products:

Packing:

Specification:

Production Process:

Quality Control:

Construction Guide:
